Painting Coated Programmable Temperature Humidity Chamber Climatic
Test Chamber
Application:
Climatic chamber is used to test various types of materials for
their tolerances of heat, cold, dry, humidity. It is applied for
quality inspection for all types of
electronic products, electric appliance, and products from
communication, instrument, automobile, plastic, metal, food,
chemical, building materials,
medical and aerospace industries.
Features:
1. Graceful appearance, circularly shaped body, surface treated
with mist strips and plane handle with no reaction. Easy to
operate, safe and reliable.
2. Rectangular double-glassed watching window for the observation
of the test production during the testing process. The window is
equipped with sweat-proof electrical heating device that can
prevent water steam from condensing into droplets, and with high
brightness PL fluorescent
bulbs to provide light inside the box.
3. Double-layer-insulated airtight doors, able to insulate the
internal temperature effectively.
4. Water supply system that is externally connectable, convenient
for refilling water into the humidifying pot and automatically
recyclable.
5. The French Tecumseh brand is used for the circulation system of
the compressor, capable of removing the lubricant between the
condensation pipes
and capillaries. The environment-protecting coolant is used for the
whole series (R232,R404)
6. Imported LCD display screen, capable of displaying the measured
value as well as the set value and time.
7. The control unit has the functions of multiples segment program
editing, and of quick or slope control of temperature and humidity.
8. Inserted mobile pulley, convenient for movement an relocation,
with strong positioning screws.
Technical Parameters:
Model | TH - 80 - B |
Internal Dimension | W400xH500xD400(mm) |
Internal Dimension | W950xH1650xD950(mm) |
Temperature Range | Low Temperature: B:0℃
(Temperature according to customer’s requirement) |
Humidity Range | 30%R.H.(Humidity according to customer’s requirement) |
Analytic Accuracy/ Distribution uniformity of temperature and humidity | 0.1℃; 0.1% R.H/±2.0℃; ±3.0% R.H. |
Control Accuracy of Temperature and Humidity | ±0.5℃; ±2.5% R.H. |
Temperature Rising/ falling Speed Rate | Temperature rising approx. 0.1~3.0℃/min / temperature falling approx.0.1~1.5℃/min; ( The Falling Speed Rate Min.1.5℃per minute is a special optional condition) |
Temperature
/humidity | -40 degree, 20%~98%R.H. |
Material | Material of the inner box is SUS 304# stainless steel, of the outer box is stainless steel or SEE cold-rolled steel with paint coated, Insulation material is resistant to high temperature, high density,
formate chlorine, ethyl acetum foam insulation materials |
Cooling System | Wind cooling or water cooling/single segment compressor(-40℃,
double segment compressor -70℃) |
Protection Devices | Fuse-free switch, overloading protection switch for compressor,
high and low voltage coolant protection switch, over-humidity and
over-temperature protection switch, fuses, fault warning system, water short storage
warning protection |
Optional Accessories | Inner door with operation hole , Recorder, Water Purifier,
Dehumidifier |
Compressor | French Tecumseh Brand,Germany Bizer Brand |
Power | AC220V 1ph 3 lines, 50/60HZ , AC380V 3ph 5 lines , 50/60HZ |
Approx. Weight (Kg) | 150 |

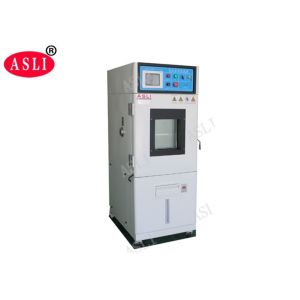

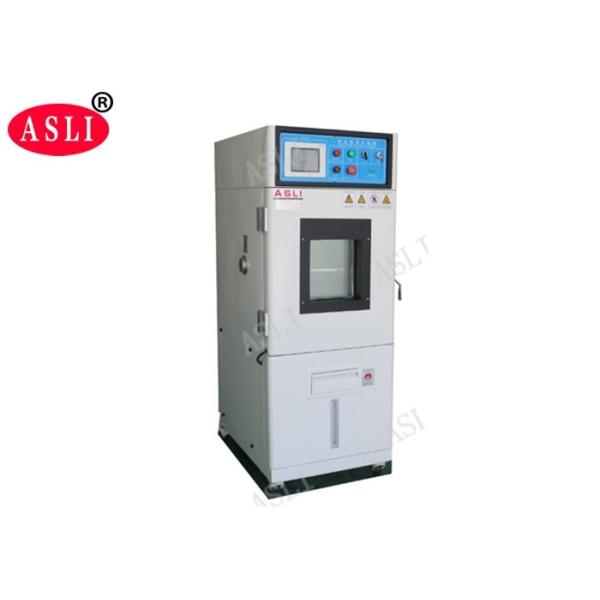

Product photograph :
