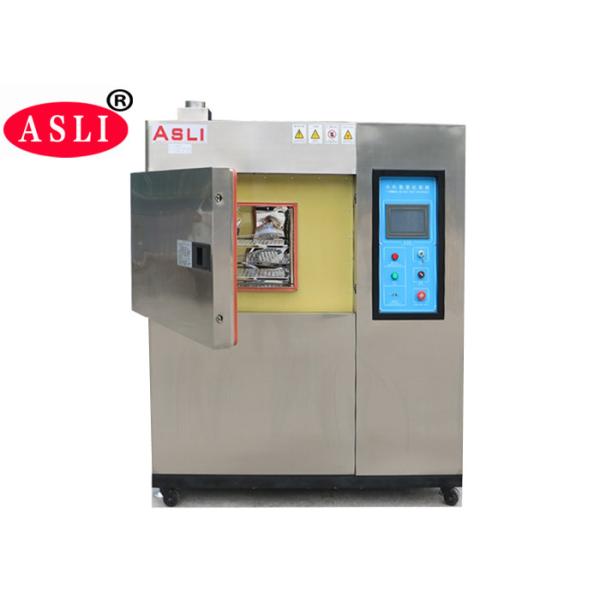

High Low Temperature Thermal Shock Chamber , Adopt Binary Cooling
System
Thermal Shock Chamber Application:
Temperature shock chamber is used to test the capability of
material structure or composite materials to withstand the
continuous environmental changes between extremely high temperature
and low temperature during a short period, and therefore understand
the chemical changes or physical damages caused by expansion from
heat and contraction from cold in the shortest possible time. It is
applicable to metals, plastic, rubber, electronics amongst other
materials. The test result can be used as a reference or basis for
product improvement.
Thermal Shock Chamber Technical parameters:
| Model | TS-49(A~C) | TS-80(A~C) | TS-150(A~C) | TS-252(A~C) | TS-450(A~C) |
Internal Dimension
WxHxD ( mm) | 400x350x350 | 500x400x400 | 600x500x500 | 700x600x600 | 800x750x750 |
External Dimension
WxHxD (mm) | 1400x1800x1400 | 1550x1950x1550 | 1600x2000x1700 | 1700x2100x1750 | 1800x2200x1900 |
Temperature Range of Testing zone | Type A:-40℃~+150℃ ( 200℃ is Optional) | Type B:-55℃ ~+150℃ ( 200℃ is Optional ) | Type C:-65℃ ~+150℃ ( 200℃ is Optional) |
| High temperature Range of Testing zone: +60ºC~+150ºC ( 200ºC is
Optional);
Low Temperature Range of Testing Zone: -10ºC~-40ºC / -55ºC / -65ºC |
Exposure Time of High/Low Temperature | Exposure Time of High Temperature: +60℃ ~ +150℃ (200℃ is Optional)
30Mins |
| Exposure Time of Low Temperature : -10℃~Type A:-40℃ / Type B -55℃ /
Type C -65℃ 30Mins |
Temperature of Heat- Storing Slot / Heating Time | RT~200℃/About 45mins |
Temperature of Cool- storing Slot / Cooling Time | RT~-75℃/ About 100mins |
| Temperature Recovery Time/Conversion Time | ≤5min/≤5sec |
Control Accuracy / Distribution Uniformity | ±0.5℃/±2℃ |
Internal and External Material | Material of the inner box is SUS 304# stainless steel,of the outer box is stainless steel or SEE cold-rolled steel with paint coated. |
| Insulation Material | High temperature resistant , high density , formate chlorine ,
ethyl acetum foam insulation materials |
| Mechanics | P.I.D+S.S.R+ Micro-computer balanced temperature control system |
| Cooling System | Semi-hermetic double-stage compressor(water-cooled type) /Hermetic double-stage compressor (air-cooled type) |
Security Protection Devices | Non-fuse breaker, high and low pressure protective switch of the compressor , refrigerator high-pressure protective switch , failure warning system, electronic alarm |
| Accessories | viewing window(special order) |
| Compressor | French 'Tecumseh' Brand, Germany Bizer Brand |
| Power | AC220V 1∮ 3 lines ,50/60HZ, AC380V 3∮ 5 lines ,50/60HZ |
| Weight (Approx) | 450 | 600 | 750 | 950 | 1200 |
Thermal Shock Chamber Features:
1.It is divided into three zones: high temperature zone, low
temperature zone, and testing zone. The test sample is in static
mode.
2.Using touch-control graph control as operation interface, easy to
operate.
3.Applying wind route conversation to the shock method to
distribute temperature to the testing zone for cold and thermal
shock measurement.
4.For high temperature shock or low temperature shock, max. time is
up to 999H, and max. circulation cycles are 9999 times.
5.The system can be used for automatic Circulation Shock or manual
selective shock.
6.Adopt binary cooling system, with quick cooling effect. Cooling
method is water cooling.
7.Can entering normal temperature. RS-232 and RS-485 communication.
Thermal Shock Chamber:
1.Professional Manufacturer
2.Operation easy
3.Customized Size
4. Fast Delivery
Package: Standard export wooden case, plywood case or according to
customer's requirement.
Warranty: one year free warranty for whole set machine,lifelong time
maintainance.
After-sale service: feedback within 8 hours after get the call or email.
Service:OEM service,Design service,Buyer lable service.
We are looking forward to doing more business at home and abroad.
If you are interested in our products,please feel free to contact
us ! And warmly welcome our new and regular customers visit our
factory !
