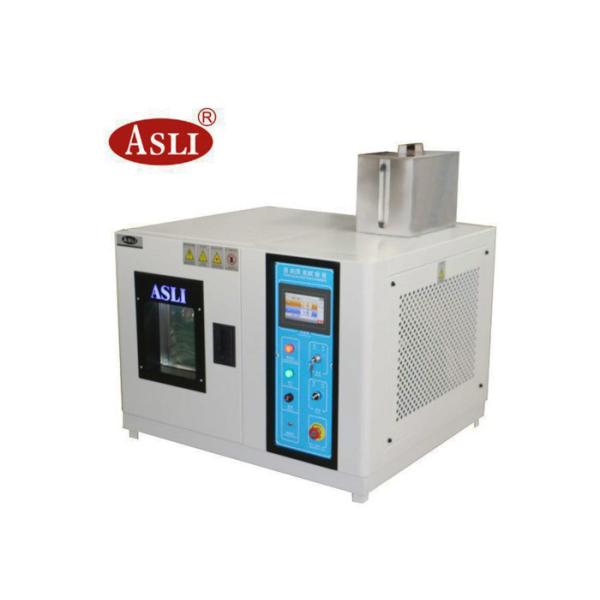

    Small Temperature Chamber , Benchtop Temperature Chamber For Cold Hot Test

    Ask Lasest Price
    Brand Name : ASLI
    Model Number : DTH-80
    Certification : CE, ISO , SGS
    Price : Negotiate
    Payment Terms : T/T, Western Union
    Supply Ability : 50 sets per month
    Delivery Time : 20 workdays
    • Product Details
    • Company Profile

    Small Temperature Chamber , Benchtop Temperature Chamber For Cold Hot Test

    DTH-80-A Desktop Temperature Humidity Test Chamber...



    1. Professional Manufacturer
    2. Material: SUS#304
    3. Fast delivey
    4, LCD touch screen


    ModelDTH-80ADTH-80BDTH-80C
    Internal Dimensions
    WxHxD (mm)
    400X500X400
    External Dimensions
    WxHxD (mm)
    1150X1150X1050
    Temperature Range(RT+10°C) ~+150°C0~+150°C-20 ~+150°C
    Humidity Range20%~98%R.H.
    Analytic Accuracy /
    Distribution Uniformity
    of Temperature & Humidity
    0.1°C; 0.1% R.H / ±2.0°C; ±3.0% R.H.
    Control Accuracy of
    Temperature & Humidity
    ±0.5°C; ±2.5% R.H.
    Temperature Rising / Speed RateTemperature rising approx. 0.1~3.0°C/min;
    temperature falling approx. 0.1~1.5°C/min;
    Internal and External MaterialMaterial of the inner box is SUS 304# stainless steel,
    of the outer box is stainless steel or SEE cold-rolled steel with paint coated.
    Insulation MaterialResistant to high temperature, high density, formate chlorine,
    ethyl acetum foam insulation materials
    Cooling SystemWind cooling
    Protection DevicesFuse-free switch, overloading protection switch for compressor,
    high and low voltage coolant protection switch, over-humidity and
    over-temperature protection switch, fuses, fault warning system,
    water short storage warning protection
    Optional AccessoriesInner door with operation hole(Optional), Recorder(optional),Water Purifier
    CompressorFrench Tecumseh Brand,Germany Bizer Brand
    PowerAC 220V, 1ph 3 Lines , 50/60HZ;
    Weight (Kg)75


    Application with 80L Benchtop Climate Test Chamber:


    Small Temperature Chamber,Benchtop Temperature Chamber for Cold Hot Test is used to test various types of materials for their tolerances of heat, cold, dry, humidity, and applied for quality inspection for all types of electronic products, electric appliance, and products from communication, instrument, automobile, plastic, metal, food, chemical, building materials, medical and aerospace industries.


    Feature for 80L Benchtop Temperature Test Chamber:


    1. Graceful appearance, circularly shaped body, surface treated with mist strips, and plane handle with no reaction. Easy to operate, safe and reliable.
    2. Rectangular double-glassed watching window for the observation of the test production during the testing process.The window is equipped with sweat-proof electrical heating device that can prevent water steam from condensing into droplets, and with high brightness PL fluorescent bulbs to provide light inside the box.
    3. Double-layer-insulated airtight doors, able to insulate the internal temperature effectively.
    4. Water supply system that is externally connectable, convenient for refilling water into the humidifying pot and automatically recyclable.


    Pictures for reference:
