Germany Bizer Large Capacity Environmental Walk In Temperature
Humidity Room
Germany Bizer Large Capacity Environmental Walk In Temperature
Humidity Room give the maximum flexibility in both chamber size and
performance for your most demanding temperature/humidity testing
requirements. Walk-In Temperature & Humidity Test Room is used to
test various types of materials for their tolerances of heat, cold,
dry, humidity. It is applied for quality inspection for all types
of big test samples, such as electronic products, electric
appliance, and products from communication, instrument, automobile,
plastic, metal, food, chemical, building materials, medical and
aerospace industries.
Germany Bizer Large Capacity Environmental Walk In Temperature
Humidity Room Features :
1. Graceful appearance, circularly shaped body, surface treated
with mist strips and plane handle with no reaction. Easy to
operate, safe and reliable.
2. Rectangular double-paned viewing window for the observation of
sample under test ,with interior lights
3. Double-layer-insulated airtight doors, able to insulate the
internal temperature effectively.
4. Water supply system that is externally connectable, convenient
for refilling water into the humidifying pot and automatically
recyclable.
5. French Tecumseh brand is used as compressor, with environment
friendly refrigeration R23,R404A
6.LCD display screen, capable of displaying the set point and
actual value at the same time
Germany Bizer Large Capacity Environmental Walk In Temperature
Humidity Room Technical Parameters:
| Model | THR-volume (low-temperature options : A ~ F) |
| Inner Dimensions(cm) | Customers designated space size and design |
| Temperature Range | Low Temperature(A:25℃ B:0℃ C:-20℃ D:-40℃ E:-60℃ F:-70℃) High
Temperature 80℃ (80℃ ~150℃ is optional) |
| Humidity Range | 20%~98%R.H.(10%-98% R.H. / 5%-98% R.H ,is a special optional
condition, need dehumidifier) |
Indication Resolution/Distribution Uniformity of Temperature & Humidity | 0.1℃; 0.1% R.H/±2.5℃; ±3.5% R.H. |
Control Accuracy of Temperature and Humidity | ±0.5℃; ±2.5% R.H. |
Temperature Rising/Falling Velocity | Temperature rising approx. 0.1~3.0°C/min temperature falling approx. 0.1~1.0°C/min; ( The Falling Velocity Min.1.0°C /min is a optional) |
| Cooling System | Water cooled |
| Protection Devices | Fuse-free switch, overloading protection switch for compressor,high
and low voltage coolant protection switch, over-humidity &
over-temperature protection switch, fuses, fault warning system,
water short storage warning protection |
| Optional Accessories | Slope for cart , Recorder, Water Purifier, Dehumidifier |
| Compressor | French Tecumseh Brand, Germany Bizer Brand |
| Power | AC 380 V(±10%),50/60HZ ,3 ph 5 Lines |

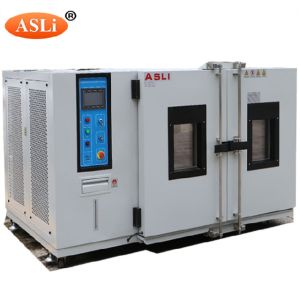

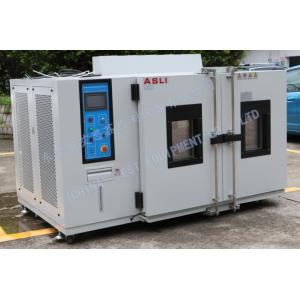

Pictures:
Our service:
1.High quality guarantee.
2.Shipment with professional documents.
3.Packing as your request, with photo before shipment.
4.Reply within 48 hours and provide solution within 3 working days
5.Professional after-service from our engineers.
6.Warranty period 12 monthes.
Our advantages:
1.Professional technology support.
2.Full experience of large numbers containers loading in Chinese
sea port.
3.Fast shipment by reputed shipping line.
4.Best service after shipment with emails.
5.We are professional test equipment manufaturer in China with
excellent experience and skills, also have best quality products
Our concept:
1.Client is first. We are trying to bring maximum profit to our
clients and offer best quality products
2.Credibility is the most important.
3.Quality control is our life.
4.Great sense of responsibility.
Short introduction about ASLi factory:
We are a long history testing equipment manufacturer, in the past
28 years, we devoted to simulation environmental testing equipment
and Mechannical vibration and shock testing machine.Germany Bizer
Large Capacity Environmental Walk In Temperature Humidity Room is
our star products , and we had obtained the CE certification for
this machine .
ASLi main test equipments:
Environmental chambers, temperature (humidity) chamber,Thermal
shock chamber, PCT /Hast chamber (Highly accelerated stress test
chamber),ESS chamber, Walk in stability chamber,Germany Bizer Large
Capacity Environmental Walk In Temperature Humidity Room,Vacuum
oven,electrodynamic vibration shaker,mechanical shock
tester,environmental combined vibration chamber,etc
